Fencing Corrugated | Definition and Its Types
Have you ever wondered about the benefits or types of corrugated fence in UAE? Well, today, we are going to cover the essential kinds of corrugated walls. Construction sites must take sufficient measures, including fencing, to ensure protection and durability. Barricading the sites is also a significant way to prevent accidents or injuries. However, temporary fencing is considered a skillful option because construction works are temporary corrugated fencing projects completed within the right time.
Send Enquiry
So, now the serious question is, which kind of fencing is suitable for these construction sites? Though we have already mentioned the necessary answer, temporary fences, countless options are also available. As the United Arab Emirates’ leading fencing and temporary corrugated site hoarding supplier and manufacturer, we suggest that our clients opt for solid fencing. Individuals often get confused between fencing and hoarding. Hoarding is a brief structure resembling a fence comprising corrugated sheets, galvanized C-channels, and pipes.
Conversely, fences are built with barbed wire and mesh wire. Fabrics are knitted into a diamond-shaped structure in fences. Furthermore, wire mesh fences look like nets used in road construction, highway fencing, and similar applications. However, in this write-up, we will discuss the fundamental and brief definition of corrugated fencing and its significant types. Let’s get started!

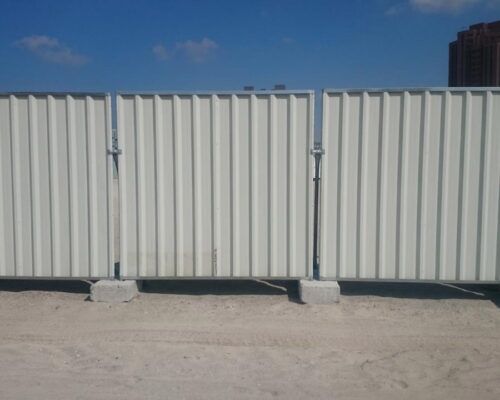

What is a Temporary Fence?
Due to its functionality and versatility, temporary fencing is an imperative component in construction sites. Likewise, this type of temporary fencing in UAE is specifically designed to stand as a protective barrier, preventing unauthorized access and protecting both pedestrians and workers from potential risks. Opting for top-quality materials like galvanized steel, corrugated fences are durable, sustainable, and sturdy, capable of withstanding severe weather conditions.
Contrarily, they can also be easily disassembled and installed, ensuring adaptability and flexibility as construction project sites grow. Additionally, these fences can be customized according to the project’s needs and preferences, from incorporating access gates for efficient entry and exit points to height adjustments. With their ability to improve professionally, maintain visual aesthetics and safety, and organize traffic flow, fence concrete block in UAE have become an integral part of any construction site setup.
Technical Specifications of Standard Fencing Hoarding Panels
A standard movable corrugated sheet in Dubai has the following technical specifications that you must know when choosing the proper fencing for the construction project. However, this chart is only for your reference. At Metal n Machine, we offer customization options to our customers according to their needs and preferences.
| Topic | Details |
|---|---|
| Corrugated Profile Sheet Thickness | 0.40mm × 1.0 meter × 2.0 meter |
| Each Frame | Width × Height (2.15 × 2.0 meter = 4.30) |
| GI Mill Finish Pipe Thickness | 1.2mm to 2.0mm |
| GI Clamp Thickness | 3.0mm |
| Thickness of the galvanized C-channel | 40mm × 40mm × 2.0mm to 2.0mm |
| Corrugated profile sheet thickness | 0.40mm × 1.0 meter × 2.0 meter |
Apart from the above configuration, our wide range of assorted RAL colors is available.
For more clarity, please refer to the RAL color chart mentioned below.
| Topic | Details |
|---|---|
| RAL 1015 | Ivory |
| RAL 9003 | White |
| RAL 3002 | Red |
| RAL 2004 | Orange |
| RAL 7004 | Grey |
| RAL 9010 | Pure White |
| RAL 5002 | ENMAR Blue |
| RAL 6038 | Green |
| RAL 6029 | Light Green and more |
| RAL 5001 | Dark Blue |
| RAL 1013 | Off White |
| RAL 1001 | Beige |
| RAL 7015 | Dark Grey |
| RAL 7036 | Grey |
| RAL 3001 | Red |
| RAL 3020 | Light Blue |
| RAL 7037 | Grey |
| RAL 1014 | Light Beige |
Varieties of Corrugated Board According to the Profile
It is worth remarking on one common detail that is ingrained in all types of corrugated fence in UAE. Therefore, it refers to a coating that can be decorative and durable (polymer) or simpler (Galvanized). Otherwise, every type of profile has its explicit width, shape, and depth. Due to this, the corrugated board’s rigidity and stability change, allowing it to be extensively used in modern construction. Next, we will prefer each profile type and its technical configuration.
1. Profile C8
Profile C8 is a corrugated sheet in Dubai that comes with a wavy structure. Hence, it has slightly inferior strength to the profiled one we are going to discuss below. It can be galvanized or covered with polymer coatings. Profile C8 is often available in white, dark green, cherry, blue, and brown (chocolate) colors.
Features of C8 Corrugated Board
| Options | Values |
|---|---|
| Sheet Width Overall | 1200 mm |
| Sheet Length | from 0.5 to 12 m |
| Working Sheet Width | 1150 mm |
| Profile Height | 8 mm |
| Sheet Thickness | 0.5, 0.55, 0.65, 0.7 mm |
| Weight Per Square Meter | – |
| Profile Step | 115 mm |
| 0.7 mm | 6.17 kg |
| 0.5 mm | 4.5 kg |
2. Profile C10
This is a sheet with corrugation in the shape of a trapezoid. While making corrugated sheet UAE, the material might reduce its strength. The colors and coating are the same as for Profile C8. This corrugated fence is used to furnish a roof with a sufficiently large inclination angle for the building of prefabricated structures, outbuildings, and fences of building cladding.
Features of C10 Corrugated Board
| Options | Values |
|---|---|
| Working Sheet Width | 1100 mm |
| Working Sheet Width | 1100 mm |
| Sheet Width Overall | 1150 mm |
| Sheet Thickness | 0.4, 0.45, 0.5, 0.6, 0.7, 0.8 mm |
| Profile Height | 10 mm |
| Profile Step | 115 mm |
| Weight Per Square Meter | – |
| 0.8 mm | 7.64 kg |
| 0.6 mm | 5.83 kg |
| 0.5 mm | 4.6 kg |
| 0.7 mm | 6.33 kg |
3. Profile C18
Profile C18 is a sheet with a wavy or ribbed surface. The raw material is designated as C18 (Wave) in the latter case. All thanks to its small thickness measures, it is easy to process, drill, and cut. Types and colors of polymer coatings are similar to the profiles that are mentioned above.
Features of C18 Corrugated Board
Options and Values
| Options | Values |
|---|---|
| Sheet Width Overall | 1023 mm |
| Working Sheet Width | 1000 mm |
| Profile Height | 18 mm |
| Sheet Thickness | 0.4, 0.45, 0.5, 0.6, 0.7, 0.8 mm |
| Sheet Length | from 0.5 to 12 m |
| Weight Per Square Meter: | – |
| 0.7 mm | 7.13 kg |
| 0.6 mm | 5.57 kg |
| 0.8 mm | 8.11 kg |
| 0.5 mm | 5.18 kg |
4. Profile C21
This is the best corrugated fence in UAE. The surface is accurately ripped and shaped into a trapezoid. It is secured from corrosion by the following polymers: polyurethane and polyester. Therefore, it is used to cover roofs with a crate with a pitch of up to 80 cm.
Features of C21 Corrugated Board
| Options | Values |
|---|---|
| Sheet Width Overall | 1051 mm |
| Working Sheet Width | 1000 mm |
| Profile Step | 211 mm |
| Sheet Thickness | 0.4, 0.45, 0.5, 0.6, 0.7, 0.8 mm |
| Sheet Length | from 0.5 to 12 m |
| Weight Per Square Meter: | – |
| 0.8 mm | 8.11 kg |
| 0.7 mm | 7.13 kg |
| 0.6 mm | 5.57 kg |
| 0.5 mm | 5.14 kg |
It’s Time to Conclude Here!
Choosing the right corrugated fence is one of the tedious yet crucial aspects to consider when constructing. However, we hope this write-up provided you with all the types of corrugated fences so you can pick the right one. Furthermore, if you are still looking for a corrugated fence in UAE, your search ends here. At Metal n Machine, we have a team of professionals who know what they are doing. Do not worry if you are thinking about the different shapes and sizes of fences. We offer customization options according to our clients’ needs and preferences. So, connect with us today, and let us handle the rest.
Frequently Asked Questions
Temporary fences are self-supporting panels primarily used for construction and building-wide infrastructure sites. Additionally, they are known as portable corrugated fences as they can be easily moved from one location to another.
Yes, of course! Building sites are hazardous, so we take protective measures as an extreme priority. Furthermore, boundaries need to be designed to avoid public risk.
It should ideally be six feet. Nevertheless, it can be customized according to the client’s needs and preferences.
